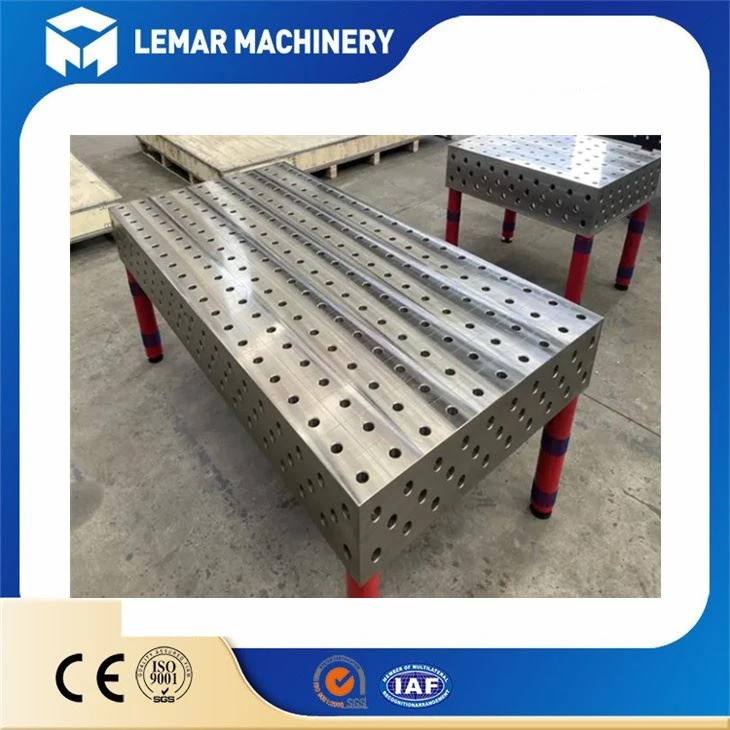

3D Vuam Rooj Nrog Daim phiaj qhov
3D Vuam Rooj Nrog Daim phiaj qhovyog ib tug heev standardized modular vuam tooling system. Nws cov yam ntxwv tseem ceeb yog cov txheej txheem ntawm cov txheej txheem, siab - cov kab sib txuas qhov tseeb tau teem rau ntawm qhov chaw ua haujlwm thiab cov chaw nyob ib puag ncig raws li kev ua lej lej. Cov qhov no feem ntau yog counterbores los yog threaded qhov, uas yog siv rau kev ceev installation thiab positioning ntawm ntau yam clamps, kev txhawb nqa, thiab positioning ntsiab, yog li ua tiav peb -spatial fixation ntawm welded workpieces.
DM Eva ncaj qha rau cov lus hais thiab cov ntsiab lus ntxiv ↓↓↓
Yam khoom
Khoom Loj
Peb muab kev pabcuam customized thiab OEM. Hu rau Eva kom paub meej.
Khoom nta
Cov ntsiab lus tseem ceeb thiab Txoj Cai Ua Haujlwm
3D Vuam Rooj Nrog Daim phiaj qhovNws yog ib qho tseem ceeb ntawm "mechanical coordinate system" lossis "materialized ua hauj lwm daim phiaj".
• Platform li Datum: Lub platform nws tus kheej yog qhov loj, siab -precision datum dav hlau (feem ntau precision milled thiab kub- kho).
• Qhov raws li Cov Ntsiab Lus Sib Koom: Txhua qhov kab sib chaws sawv cev rau txoj haujlwm sib koom ua ke hauv qhov chaw (piv txwv li, kab sib chaws nrog qhov sib nrug ntawm 100mm lossis 50mm).
• Cov Cheebtsam raws li Actuators: Los ntawm kev txhim kho ntau yam khoom siv sib xyaw ua ke (kev txhawb nqa blocks, lub kaum ntse ntse, nias caj npab, nrhiav tus pins, thiab lwm yam) ntawm cov ntsiab lus sib koom ua ke, cov vuam tshwj xeeb tau hloov kho rau cov duab sib txawv thiab ntau thiab tsawg tuaj yeem tsim kho sai.
Cov khoom ua haujlwm
Hom Kev Ua Haujlwm
1. Kev Npaj Ua Haujlwm: Hauv CAD software (lossis kev mob siab rau offline programming software), raws li cov qauv digital ntawm lub platform, tsim lub virtual clamping ntawm lub workpiece thiab txiav txim siab qhov kev sib koom ua ke ntawm txhua qhov kev sib txuas.
2. Kev Npaj Platform: Nyob ntawm qhov loj ntawm lub workpiece, nws yuav tsim nyog los txuas ntau lub platform rau hauv ib qho tag nrho siv cov pins thiab bolts.
3. Kev xaiv thiab kev teeb tsa: Raws li cov qauv tsim, xaiv cov khoom txhawb nqa tsim nyog, qhov chaw, thiab cov khoom siv clamping los ntawm lub tsev qiv ntawv tivthaiv, thiab ruaj khov rau ntawm qhov chaw teev daim phiaj siv T- txiv ntseej, bolts, thiab ntxhua khaub ncaws.
4. Workpiece Clamping thiab Calibration: Muab lub workpiece, siv qhov zoo -tuning mechanism ntawm lub Cheebtsam rau qhov kawg alignment thiab centering, thiab ces xauv nws.
5. Kev ua haujlwm vuam: ua vuam. Vim qhov tseeb qhov chaw, deformation tuaj yeem tswj tau zoo thiab qhov ntev tuaj yeem lav.
6. Disassembly thiab Reconfiguration: Tom qab lub workpiece tiav lawm, loosen lub fixture, tshem tawm lub workpiece, thiab ntxuav lub vuam slag. Rov ua cov kauj ruam 1-4 rau lub workpiece tom ntej.
Khoom Qhia
Daim ntawv pov thawj cuam tshuam
Kev tshuaj xyuas neeg siv khoom
khoom xa tuaj
Txoj kev thauj mus los twg peb txais?
Peb feem ntau xa3D Vuam Rooj Nrog Daim phiaj qhovtxawv teb chaws los ntawm hiav txwv.
Nyob rau tib lub sijhawm, peb yuav muab koj nrog ntau cov ntaub ntawv xav tau rau kev lis kev cai clearance ntawm qhov chaw.
Peb feem ntau siv CIF / FOB / EXW cov nqe lus lag luam, thiab yog tias koj muaj cov cai tshwj xeeb, peb kuj yuav daws tau rau koj.
Tom qab kev pabcuam
Peb ib txwm nyob ntawm no rau koj
★Standard Warranty: 12 lub hlis lossis 2,000 teev ua haujlwm (qhov twg los ua ntej).
★ Ntxiv Warranty: Xaiv qhov kev pab them nqi mus txog 36 lub hlis.
★ Kev Txhawb Thoob Ntiaj Teb: 24/7 kev pabcuam thiab cov khoom seem.
★ Kev cob qhia: Ntawm -qhov chaw lossis chaw taws teeb ua haujlwm / kev cob qhia tu.
3D Vuam Table Nrog Daim phiaj qhov yog lub cev embodiment ntawm niaj hnub tsim cov ntsiab lus:
• Nws yog dab tsi: lub modular, siab -precision, reconfigurable lub cev ua hauj lwm tswj system platform.
• Tus nqi tseem ceeb: Nws teb rau cov khoom lag luam tsis paub meej nrog kev yoog raws thiab nrawm, txo lub sijhawm npaj ntau lawm los ntawm "hli / lub lis piam" mus rau "hnub / teev", zoo kawg nkaus ua tau raws li kev xav tau ntawm kev lag luam tam sim no rau ntau yam, cov khoom me me, thiab xa khoom sai.
• Qhov tseem ceeb: Nws tsis yog ib qho cuab yeej xwb, tab sis kuj yog ib qho kev hloov ntawm cov txheej txheem ntau lawm - hloov los ntawm kev tsim cov cuab yeej tshwj xeeb rau cov khoom lag luam kom ceev cov khoom lag luam nrog cov cuab yeej siv thoob ntiaj teb.
Nws yog ib qho tseem ceeb hauv kev sib txuas cov txheej txheem vuam ib txwm siv nrog digital thiab hloov pauv kev txawj ntse tsim, thiab ua lub luag haujlwm tseem ceeb uas yog "cov kabmob hloov tau yooj yim" hauv Kev Lag Luam 4.0 thiab kev tsim khoom ntse.
