Industrial Vuam Fixture Table
🔧 Tso tseg kev hloov kho ntawm phau ntawv thiab pib qhov tseeb qhov chaw - koj qhov kev vuam raug pib nrog lub platform no.
Product Overview
Vuam deformation, qhov chaw tsis raug, rov kho dua ... Cov teeb meem no siv koj cov sijhawm ua haujlwm thiab cov txiaj ntsig txhua hnub. Lemar 1200 * 2400mm cam khwb cia hlau vuam fixture platform yog integrally cam khwb cia los ntawm siab -lub zog grey cam khwb cia hlau (HT300) thiab undergoes dual kev kho mob ntawm ntuj aging thiab kev co laus, featuring ib tug ruaj khov qauv thiab zoo heev deformation kuj. Nws ua tiav qhov flatness ntawm 0.1 hli ib square meter, ua kom txhua qhov workpiece ua tiav ntawm qhov tseeb tiaj tus pib los ntawm thawj qhov sib txuas.
RoojLoj
Xav paub ntau ntxiv thov hu rau pebsales engineer:Eva(Email:evasummer@lemarmetal.com)
cov khoom siv thev naus laus zis
Khoom siv:ib. HT300 casting, b. Q355 steel phaj vuam, c. High hardness steel phaj vuam, d. Stainless hlau phaj welding.
Aperture:A=φ28.065--φ28.149mm.
Qhov sib nrug:L 1=100± 0.05 hli.
Engraving:Kawm tiav kab nrug W1=100± 0.05mm.
Flatness:0.1 / 1000 hli
Verticality:0.1 / 200 hli
Roughness:Ra 3.2.
Load-cov kabmob:Txheem hom: 2T, ncej hom: 5T.
Hardness:Khoom siv lub cev hardness.
Khoom siv:ib. HT300 casting, b. Q355 steel phaj vuam, c. High hardness steel phaj vuam, d. Stainless hlau phaj welding.
Aperture:A=φ16.065--φ16.149mm.
Qhov sib nrug:L 1=50± 0.05 hli.
Engraving:Kawm tiav kab nrug W1=50± 0.05mm.
Flatness:0.1 / 1000 hli
Verticality:0.05 / 200 hli
Roughness:Ra 3.2.
Load-cov kabmob:Txheem hom: 2T, ncej hom: 5T.
Hardness:Khoom siv lub cev hardness.
Khoom zoo
Core Zoo
✅ 5- qhov thib ob ceev txoj hauj lwm - Nruab nrog 100 × 100mm tus qauv qhov kab sib chaws, ua ke nrog ceev xauv pins thiab qhov chaw teeb tsa, cov khoom ua haujlwm tuaj yeem kaw tam sim tom qab tso, txhawb nqa clamping efficiency los ntawm 50%.
✅ Zero zais vuam deformation - cam khwb cia hlau platform nta siab rigidity thiab zoo heev poob siab absorbing, tuav ruaj khov flatness txawm nyob rau hauv vuam thaum tshav kub kub cuam tshuam. Thawj - daim ntawv tsim nyog tus nqi nce 30%, tshem tawm rov ua dua.
✅ 10-xyoo precision lav - Ua los ntawm HT300 khoom. Kev kho deg scraping triples nws hnav tsis kam. Nrog rau kev siv tsis tu ncua, lub tiaj tiaj tiaj tuaj yeem khaws cia rau ntau dua 10 xyoo, ua rau nws yog ib qho - sijhawm thiab ntev - lub sij hawm ua lag luam zoo.
Qhov no yog leej twg?
Daim ntawv thov cheeb tsam
• Cov qauv hlau thiab cov tshuab hnyav welding: haum rau cov khoom loj nrog cov khoom thauj zoo heev -cov kabmob muaj peev xwm
• Automotive qhov chaw vuam fixtures: txhawb kev tsim khoom loj thiab hloov qauv sai
• Pipeline thiab thav duab qauv: ua kom muaj ntau-lub kaum sab xis vuam thiab hloov kho qhov teeb tsa
• Robotic welding workstations: ua lub luag haujlwm siv los koom tes nrog cov tshuab tsis siv neeg

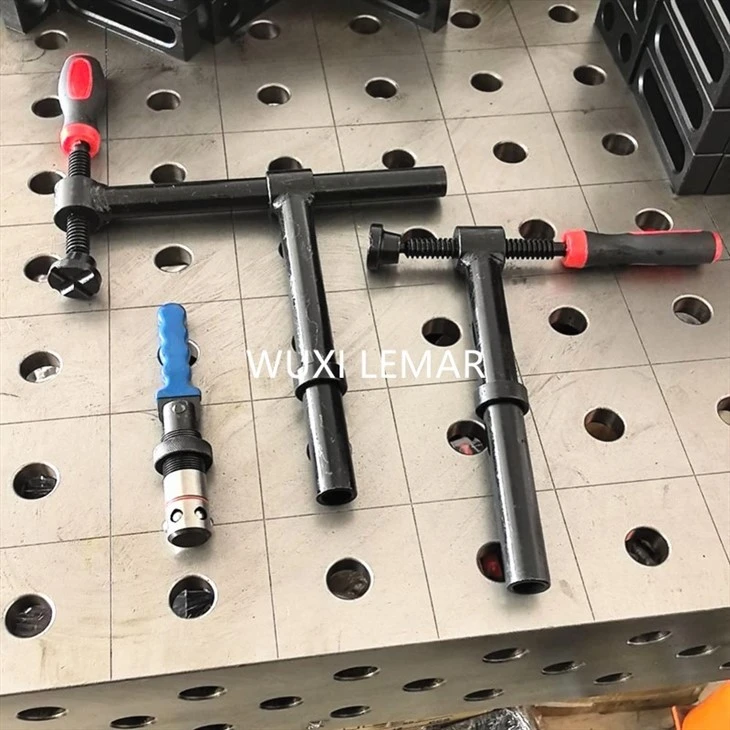

Vuam rooj Accessories
Peb muaj daim ntawv teev cov khoom siv tag nrho thiab teev npe, hu rau peb tus kws muag khoom muag:Eva lub caij ntuj sovrau cov ntaub ntawv download.
Daim ntawv pov thawj cuam tshuam
Cov khoom ntim
Ntim & Shipping
Ntim thiab thauj
• Cov txheej txheem ntim: steel ncej + ntoo rooj plaub
• Kev thauj mus los: Kev thauj mus los hauv hiav txwv / Kev thauj mus los hauv av
• Lub voj voog xa khoom: 15-25 hnub (nrog rau cov khoom siv sib txuam)
Xav tiv tauj peb tus kws muag khoom muag: Eva lub caij ntuj sov ncaj qha rau ntau ntxiv!
FAQ
Q1. Dab tsi yog qhov flatness ntawm lub platform no?
A:Tsawg dua lossis sib npaug li 0.1mm / ㎡. Txhua lub platform tau raug khawb los yog ntog hauv av ua ntej xa khoom, nrog rau daim ntawv tshuaj ntsuam txuas nrog.
Q2. Lub qhov taub thiab qhov sib nrug yog dab tsi? Lawv puas yog universal?
A:• Qhov taub: φ28mm (mainstream) lossis φ16mm (yeem)
• Qhov sib nrug: 100 × 100mm daim phiaj
• Tau tshaj feem ntau cov qauv vuam fixtures, ceev xauv pins thiab U-zoo li tus phaj siab ntawm lub khw.
Q3. Dab tsi yog qhov load -cov kabmob muaj peev xwm? Nws puas yuav deform thaum vuam hnyav workpieces?
A:Static load Ntau dua lossis sib npaug li 3000kg. Ua los ntawm HT300 cam khwb cia hlau nrog 25mm tuab ua hauj lwm nto, nws nta siab rigidity thiab zoo heev poob siab absorbing, thiab yuav tsis deform ho nyob rau hauv ib txwm welding kub cuam tshuam.
Q4. Puas yog kev tiv thaiv -kev kho xeb yuav tsum tau ua rau saum npoo? Puas yog siv roj ua ntej xa khoom?
A:Anti-cov roj xeb yog coated ntawm lub platform nto ua ntej xa khoom. Nws tuaj yeem siv ncaj qha thaum tau txais; Kev siv roj tsis tu ncua yog pom zoo yog tias tsis siv sijhawm ntev -.
Q5. Puas yog cov ceg txhawb nqa lossis cov casters suav nrog?
A:Kev them nyiaj yug ob txhais ceg tsis suav nrog lub platform lub cev, tab sis cov khoom siv xaiv tau muaj:
• Qhov siab- adjustable steel txhawb ob txhais ceg
• Txawb puag nrog universal lockable casters
• Kho ko taw pads
Q6. Puas tuaj yeem tsis yog - qhov loj me tuaj yeem hloov kho?
A:Yog lawm. Feem ntau customized loj muaj xws li:
900 × 600, 1500 × 3000, 2000 × 4000mm thiab lwm yam. Thickness, qhov taub thiab qhov sib nrug tuaj yeem hloov kho raws li qhov yuav tsum tau ua, thiab lub sijhawm xa khoom yuav tsum tau lees paub cais.
