Precision Vuam Platform rau Industrial & Heavy -Lub luag haujlwm Fabrication

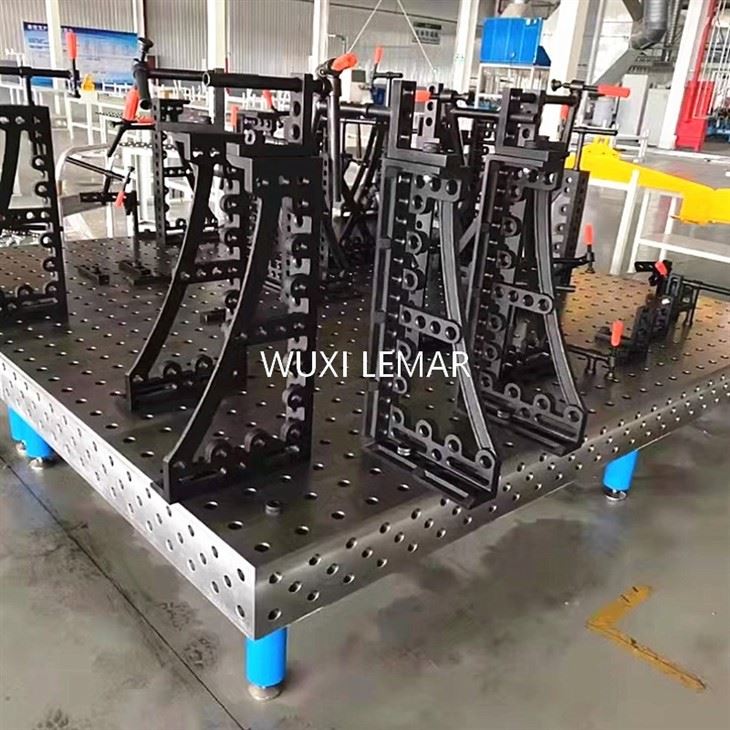

1000 × 2000mm Vuam Fixture Rooj nrog cov cuab yeej|Q355 Hlau|Nitrided Nto
Product Overview
Peb1000 × 2000mm Vuam Fixture Tableyog lub siab -precision, hnyav- lub luag haujlwm ua haujlwm tau tsim los rau cov kws welders thiab fabricators. Ua los ntawmQib Q355 siab -lub zog steelthiab ua tiav nrog anitrided nto kho, lub rooj no yog engineered los tiv thaiv weld spatter, corrosion, thiab mechanical hnav.
Cov txheej txheem tiav suav nrog tag nrho suitevuam fixture cuab yeej(clamps, nres, adapters, thiab positioning squares), ua rau koj ruaj ntseg, dlhos, thiab weld complex sib dhos nrog0.1mm repeatable raug. Nws yog tus txha caj qaum ntawm ib qho kev lag luam lean manufacturing lossis kev cai fabrication khw.
Table Parameters
Xav tias dawb hu rau pebsales engineer:Eva(Email:evasummer@lemarmetal.com)rau ntxiv!
| Specification | Paub meej |
|---|---|
| Qauv No. | LM1020-Table |
| Table Size | 1000 × 2000 × 200 hli |
| Khoom siv | Q355B (sib npaug rau S355JR / A572 Gr.50) |
| Nto | Gas nitriding (hardness 500-600 HV) |
| Flatness | Tsawg dua lossis sib npaug li 0.01mm / m² |
| Daim phiaj | 100 × 100 hli (± 0.05mm) |
| Standard Kit | Rooj + ceg + 40-pc Tooling Set |
| Lub Sijhawm Lead | 15-25 hnub ua haujlwm |
Ntsiab nta & qhov zoo
🔩 1000 × 2000mm Ua Haujlwm Nto
Dav txaus rau qhov loj sub- cov khoom sib dhos, tseem haum rau cov qauv kev cob qhia layouts . 16mm lossis 28mm txoj kab uas hla qhov (customizable) ntawm 100 × 100mm daim phiaj.
🛡️ Q355 Siab -Lub zog hlau
Lub zog muaj zog ntau dua (355 MPa) dua li tus qauv Q235. Resistant deformation nyob rau hauv hnyav clamping quab yuam thiab thermal stress thaum vuam.
Nitrided Surface Treatment
• Ultra{0}} nyuaj: Nto hardness Ntau dua los yog sib npaug rau 500 HV
• Spatter -resistant: Weld spatter pops tawm yooj yim
• Corrosion-resistant: Tsis muaj xeb los ntawm flux lossis coolant
• Tsis xav tau roj zaj duab xis- npaj rau weld
Tag nrho cov cuab yeej cuab tam suav nrog
Los nrog ceev ceev clamps, positioning pins, lub kaum sab xis brackets, shims, thiab nres blocks. Tsis tas yuav yuav cov khoom siv sib cais.
Daim Ntawv Thov / Siv Case
Zoo tagnrho rau:
Qhov no welding rooj yog zoo tagnrho rau:
Kev tsim khoom hnyav- Excavator txuas, chassis thav duab
Automotive & trailer fabrication- dov tawb, tsheb txaj, subframes
Kev tsim kho steel qauv- stair stringers, handrails, guardrails
Zog & kav dej- yeeb nkab flanges, skid mounts, txhawb brackets
General fabrication khw- jigs rau rov ua haujlwm ntau lawm
Kev cob qhia ua haujlwm & kev tswj kom zoo- qhia cov txheej txheem kho kom raug
Zoo meej rau MIG, TIG, stick, thiab txawm tias robotic vuam hlwb.
Vuam rooj Accessories
Peb muajtag nrho cov npe accessories thiab teev npe, tiv tauj peb rau cov ntaub ntawv rub tawm.
Tuam txhab ntawv pov thawj
Cov lus teb rau cov neeg siv khoom
peb case
Cia peb rov hais dua peb ua tsaug rau peb cov neeg siv khoom rau lawv txoj kev txhawb nqa.
Cov khoom ntim
Peb Ntim
FAQ
Cov lus nug nquag
Cov lus nug nram qab no tuaj yeem pab koj nkag siab txog peb cov khoom.
Q1: Qhov luaj li cas thiab daim phiaj qauv yog dab tsi?
+
-
A: Txheem lub qhov taub yog16 hlilos yog28mm ibntawm a100 × 100mm daim phiaj. Thov qhia koj qhov kev nyiam ntawm kev xaj. Clamps thiab tooling phim lub qhov loj.
Q2: Puas yog nitrided nto txawv ntawm kev pleev xim lossis pleev xim?
+
-
A: Yog. Nitriding yog ib qho cua sov-kev kho mob- txheej txheem hardening. Nws uaib feem ntawm cov hlau, tsis yog txheej. Nws tiv taus spatter adhesion, khawb, thiab xeb zoo dua li cov xim los yog oiled steel.
Q3: Puas yog lub rooj tuaj nrog ob txhais ceg thiab lub log?
+
-
A: Yog. Cov lus ua tiav suav nroghnyav- lub luag haujlwm steel ob txhais cegnrog leveling pads. Locking swivel casters yog xaiv tau (ntxiv $xxx). Lub phaj sab saum toj ib leeg yog hnyav heev - peb pom zoo kom kho qhov chaw rau kev ua haujlwm precision.
Q4: Kuv puas tuaj yeem vuam aluminium ntawm lub rooj no?
+
-
A: Yog. Qhov saum npoo ntawm nitrided yuav tsis paug txhuas. Txawm li cas los xij, siv cov hlau tsis muaj hlau txhuam rau kev ntxuav, thiab tsis txhob ncaj qha siab -amperage AC grounding los ntawm nyias aluminium qhov chaw - siv cov av tshwj xeeb clamp rau ntawm qhov chaw ua haujlwm.
Q5: Cov cuab yeej twg suav nrog hauv cov khoom siv 1 #?
+
-
A: Cov txheej txheem suav nrog: 4pcs ntawm 300x300 180℃ntsia hlau clamps \\4pcs ntawm 300x300 45℃ntsia hlau clamps\\12pcs ntawm φ28 × 50 ceev clamping bolts\\2pcs ntawm φ58/140℃carbon steel V-hom clamps\\2pcs ntawm 50 × φ75 × 2pcs ntawm 50 × φ75 × 2pcs Nws tseem nta ib sab laug thiab ib txoj cai 300 × 275 × 100 nres thiab clamping square, ntxiv rau peb hom universal nres (175 × 50 × 175, 150 × 50 × 25, 100 × 50 × 25) nrog plaub daim txhua. Ua kom tiav cov pob yog ib qho 200 × 50 × 30 oilstone, ib qho φ28 grounder connector, thiab ib qho khoom siv tu nrog lub twj tso kua mis thiab txhuam steel.
