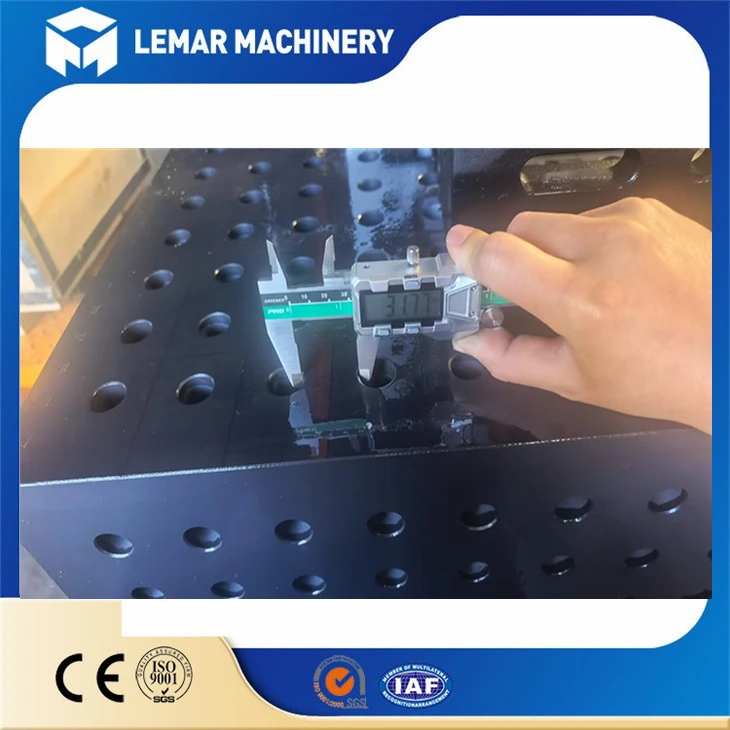

3/4 "Qhov Vuam Positioning Table
--3/4 nti Aperture Welding Workbench|Hnyav-Duty 3D Flexible Positioning System|Txhim kho Vuam Precision los ntawm 500%.--
🚀 Core Product Features
• Teem caij farewell rau cumbersome welding thiab sib dhos: Tsis muaj ntxiv ib ntus fixtures thiab complex marking thiab positioning. Standard 3/4-inch qhov sib nrug ua kom muaj millimeter-theem ceev txoj hauj lwm.
• Zero-deformation worktable: High-lub zog hlau los yog steel platform nrog kev kho kev ntxhov siab, tswj kev flatness txawm nyob rau hauv thermal cuam tshuam ntawm hnyav vuam.
• Ntau yam kev sib xyaw ua ke: Tau tshaj tus qauv 3/4 "(19.05mm) qhov system fixture, ua kom 3D clamping tau yooj yim lis cov khoom ua haujlwm nyuaj.
RoojPaub meej
Xav paub ntau ntxiv thov hu rau pebsales engineer:Eva(Email:evasummer@lemarmetal.com)
| Yam khoom | Parameter Paub meej |
| Lub qhov taub | 3/4 nti (19.05mm) |
| Qhov Qhov Ncauj | 2 nti (19.05mm) |
| Qhov Qhov Sib Nqus Tolerance | ± 0.02 hli (Grade Precision) / ± 0.05 hli (Standard Qib) |
| Cov ntaub ntawv rooj | HT300 High Rigidity Ductile Hlau |
| Kev kho saum npoo | Nitriding Hardening |
| Flatness | Tsawg dua los yog sib npaug li 0.1 mm / m² |
| Hardness | HV450-550 |
| Qhov Loj | 1200x600mm, 1500x1000mm, 2000x1000mm, 2400x1200mm (Customization Supported) |
| Daim ntawv thov | Steel Structure Vuam, Pipe Installation, Automation Equipment Frames, Automotive Manufacturing, Pwm Kho |
Product Detail Advantages
--Saib Nws Hauv Kev Ua--
1. Precision-Ground Hole Phab ntsa
• Lub qhov phab ntsa yog du thiab burr-dawb, featuring U-zoo li tus los yog tapered countersink tsim kom ceev nrooj ntawm qhov chaw pins, thaum zoo tiv thaiv cov ntaub ntawv hlau los ntawm kev daig.
2. Stiffener Grid Structure
• Lub nraub qaum txais yuav ib tug honeycomb los yog daim phiaj stiffener tsim, uas ua kom tsis muaj deformation nyob rau hauv hnyav loads thaum txo qhov hnyav.
3. High General Interchangeability
• Ua haujlwm tau zoo nrog 3/4 "fixture systems ntawm mainstream brands (piv txwv li, Siegmund, Demmeler, Bluco). Koj qhov ceev tam sim no -locking pins, sim squares, thiab cov pas nrig txhawb nqa tuaj yeem siv ntsaws-thiab- ua si.
4. Ceev-Ntev Tsim
• Los ntawm- qhov tsim qauv tso cai rau cov ntaub ntawv hlau ntog ncaj qha los ntawm, ua kom huv si ntawm lub rooj ua haujlwm nrog rab phom cua kom tswj tau qhov chaw ua haujlwm kom huv si.
Daim ntawv thov cheeb tsam
1. Steel Structure Vuam
Siv rau qhov tseeb qhov chaw thiab vuam ntawm cov qauv loj xws li lub tsev steel beams thiab cov khoom siv thav duab, zoo tswj vuam deformation thiab xyuas kom zoo ib yam kab pheeb ces kaum.
2. Pipeline thiab Flange Installation
Ceev nrooj kho cov yeeb nkab txhawb nqa thiab flanges siv lub platform qhov, kom ntseeg tau qhov ntsug thiab axis sib dhos ntawm cov yeeb nkab fittings kom raug tack vuam thiab sib dhos.
3. Kev tsim khoom siv hluav taws xob
Haum rau kev sib dhos ntawm cov neeg hlau hauv paus, kev txhawb nqa kab conveyor, thiab tsis yog - cov cuab yeej siv tau zoo. Lub platform yog rov siv tau, ua kom muaj kev sib xws ntawm ntau pawg ntawm cov khoom.
4. Automotive Manufacturing thiab Tooling
Siv rau kev sim tsim lub cev-hauv- cov qauv dawb thiab cov vuam ntawm cov kab nkhaus nkhaus xws li cov kav dej thiab cov yob tawb. Nrog 3D fixtures, spatial angle positioning tau yooj yim ua tiav.
5. Pwm Kho thiab tshuaj xyuas
Ua hauj lwm raws li ib tug overhaul platform rau cov pwm loj, nws siv cov qhov meej los kho, ntsuas, thiab ua cov vuam hauv zos kho ntawm cov pwm. Lub rooj saum npoo yog tiaj tus thiab tiv taus qhov hnyav.
Daim ntawv pov thawj cuam tshuam
Cov khoom ntim
Ntim & Shipping
Cov khoom Video
Xav tiv tauj peb tus kws muag khoom muag: Eva lub caij ntuj sov ncaj qha rau ntau ntxiv!
FAQ
Q1. Vim li cas lub qhov sib nrug ntawm lub platform no 3/4 nti?
A: 3/4 nti (19.05mm) yog tus qauv lees paub thoob ntiaj teb rau hnyav- lub luag haujlwm vuam cov rooj, sib xws nrog cov khoom siv hluav taws xob feem ntau ntawm kev ua lag luam (xws li Siegmund, Demmeler, thiab lwm yam), tshem tawm qhov xav tau kev cai - ua fixtures.
Q2. Lub workpiece hnyav npaum li cas tuaj yeem txhawb nqa lub rooj?
A: Nyob ntawm qhov tuab thiab cov khoom siv ntawm lub rooj saum npoo, qhov load -cov kabmob muaj peev xwm feem ntau yog nyob ntawm ntau dua 1000kg txog 5000kg. Rau kev thauj khoom tshwj xeeb- cov kabmob muaj nuj nqis, thov xa mus rau cov lus qhia kev ntsuas rau qhov loj me.
Q3. Puas yog lub platform xeb tom qab siv sijhawm ntev -?
A: Qhov saum npoo ntawm lub platform yog kho nrog nitriding hardening lossis tiv thaiv - xeb roj txheej, muab qee qib ntawm xeb tiv thaiv. Nws raug nquahu kom ntxuav cov ntaub ntawv hlau tom qab siv txhua hnub thiab siv tshuaj tiv thaiv - xeb roj tsis tu ncua kom tswj tau qhov zoo rau lub sijhawm ntev.
Q4. Puas tuaj yeem tsis yog - qhov loj me lossis lub qhov taub tuaj yeem kho tau?
A: Yog. Peb txhawb kev hloov kho ntawm qhov ntev, dav, tuab, nrog rau tsis yog - tus qauv qhov taub (xws li 16mm, 22mm, 28mm, thiab lwm yam), nrog lub sijhawm xa khoom feem ntau 15-20 hnub.
Q5. Puas yog cov khoom sib txuam yuav tsum tau yuav nyias?
A: Yog, lub platform thiab fixtures feem ntau yog muag nyias. Peb tuaj yeem muab koj cov txheej txheem ua tiav ntawm 3/4 "qhov taub qhov sib dhos, suav nrog ceev xauv pins, sim squares, txhawb lub kaum sab xis, thiab lwm yam.
