Product Overview

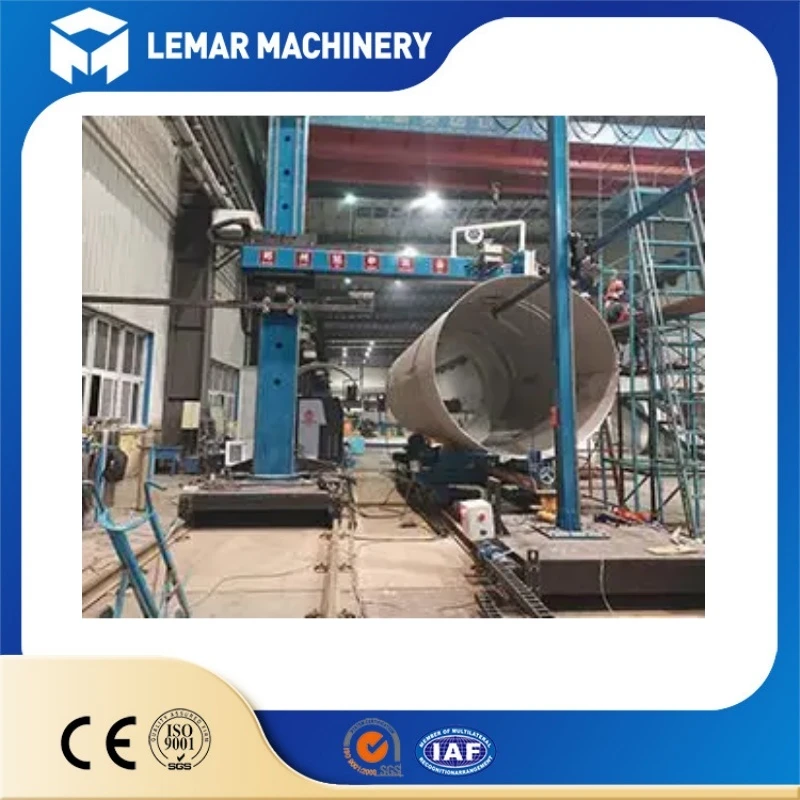

CNC Vuam Manipulatoryog lub siab -cov lej tswj cov khoom siv vuam tsis siv neeg, tshwj xeeb yog tsim los rau longitudinal thiab circumferential seam vuam ntawm boilers, siab hlab ntsha, cia tank thiab cylindrical workpieces.
Qhov sib txawv ntawm cov txheej txheem kev tswj hwm zoo tib yam, CNC qauv no tau txais tag nrho cov kev tswj hwm kev tswj hwm digital, ua kom paub tseeb ruaj khov- taw tes vuam, tsis siv neeg seam taug qab thiab tsis tu ncua - vuam ua haujlwm ceev.
Nws tuaj yeem txuas nrog vuam rotators thiab positioners los tsim ib lub siab tsis siv neeg CNC vuam ntau lawm kab, zoo heev txhim kho vuam raug thiab batch ntau lawm sib xws.
Technical Parameters
|
Parameter |
Specification |
|---|---|
|
Tswj System |
Tag nrho CNC programmable digital tswj |
|
Boom Effective Stroke |
2000mm-5000mm (customizable) |
|
Kem Lifting Stroke |
2000mm-4000mm (customizable) |
|
Vuam ceev |
0.1-1.2m / min stepless adjustable |
|
Positioning raug |
± 0.1mm / m siab precision |
|
Tsav hom |
Servo motor + precision reducer tsav |
|
Tswj Txoj Kev |
CNC kov screen programming + phau ntawv ua haujlwm |
|
Cov cuab yeej txhawb nqa |
Vuam rotator, vuam positioner, tsis siv neeg vuam tshuab |
|
Ua haujlwm Voltage |
380V / 50Hz (customizable 415V / 480V / 60Hz) |
|
Daim ntawv thov Workpiece |
Boiler, siab hlab ntsha, tshav kub exchanger, cia tank, steel cylinder |
Cov yam ntxwv tseem ceeb
Intelligent CNC Programming
Ib qho - qhov tseem ceeb ntawm kev rov qab los, tsim nyog rau kev tsim khoom loj.
Ultra{0}}Kev ua haujlwm ruaj khov
Servo synchronous tsav, tsis muaj jitter lossis vuam sib txawv.
Cov Nqi Ua Haujlwm Txuag
Unmanned tsis siv neeg vuam txo cov phau ntawv yuam kev
Muaj peev xwm sib phim
Saj zawg zog ua ke nrog ntau yam vuam auxiliary khoom.
Muaj Durability
Heavy-cov qauv ua haujlwm txhawb nqa ntev- lub sijhawm ua haujlwm tsis tu ncua.
Wide Compatibility
Matches SAW, MIG, TIG tsis siv neeg vuam tshuab thiab cov tshuab vuam thoob ntiaj teb
Installation & Commissioning cov kauj ruam
1. Kho cov kab hauv qab thiab theem tag nrho lub tshuab kom ruaj khov ntsug
2.Txuas lub zog mov thiab CNC tswj qhov system, debug kov npo thiab servo system
3.Set vuam tsis thiab qhov kev pab cuam vuam khiav raws li workpiece loj
3.Ua kom tiav tsis muaj-Load test khiav thiab txuas kev debugging nrog cov khoom siv vuam
4.Ua raws li cov qauv kev ntsuas vuam thiab kho qhov tsis haum rau kev tsim khoom batch
Daim Ntawv Thov Scope & Cases
Siab Vessel & Boiler: CNC precision vuam rau boiler thiab siab nkoj seams, ua tau raws li cov qauv kev lag luam vuam.
Thaum tshav kub kub Exchanger & Environmental Equipment: Kev ua haujlwm ruaj khov servo txo qhov deformation rau siab -lub tog raj kheej vuam precision.
Muaj peev xwm sib phim: Saj zawg zog ua ke nrog ntau yam vuam auxiliary khoom.
Muaj Durability: Heavy-cov qauv ua haujlwm txhawb nqa ntev- lub sijhawm ua haujlwm tas mus li.
Txoj Cai Ua Haujlwm
Qhov noCNC vuam manipulatoradopts digital programming thiab servo tswj qhov system. Teem vuam ceev thiab khiav ntawm CNC kov npo, lub teeb ua haujlwm ntawm txoj kev programmed tsis tu ncua.
Koom tes nrog cov cuab yeej siv rotary welding los ua kom tiav cov voj voog thiab ntev vuam nrog ruaj khov weld tsim thiab siab dhau tus nqi.
Cov khoom ntim
Tuam txhab Certificate
Cov neeg siv khoom tawm tswv yim
Cov lus nug nquag
Q: CNC vs zoo tib yam manipulator?
+
-
A: CNC hom txhawb cov programmable taug qab thiab qhov tseeb qhov chaw, rau siab dua precision standardized batch vuam.
Q: Kev them nyiaj yug cov cuab yeej txuas?
+
-
A: Yog, tag nrho synchronous txuas nrog vuam rotators thiab positioners.
Q: Kev them nyiaj yug me me customization?
+
-
A: Tag nrho cov hlab ntsha thiab qhov ntau thiab tsawg tuaj yeem ua raws li qhov xav tau.
Q: Match imported welders?
+
-
A: Tau tshaj ESAB, Lincoln, Fronius thiab mainstream vuam tshuab.
Q: Vuam precision?
+
-
A: ± 0.1mm / m siab precision, ua tau raws li siab -tus qauv vuam yuav tsum.
